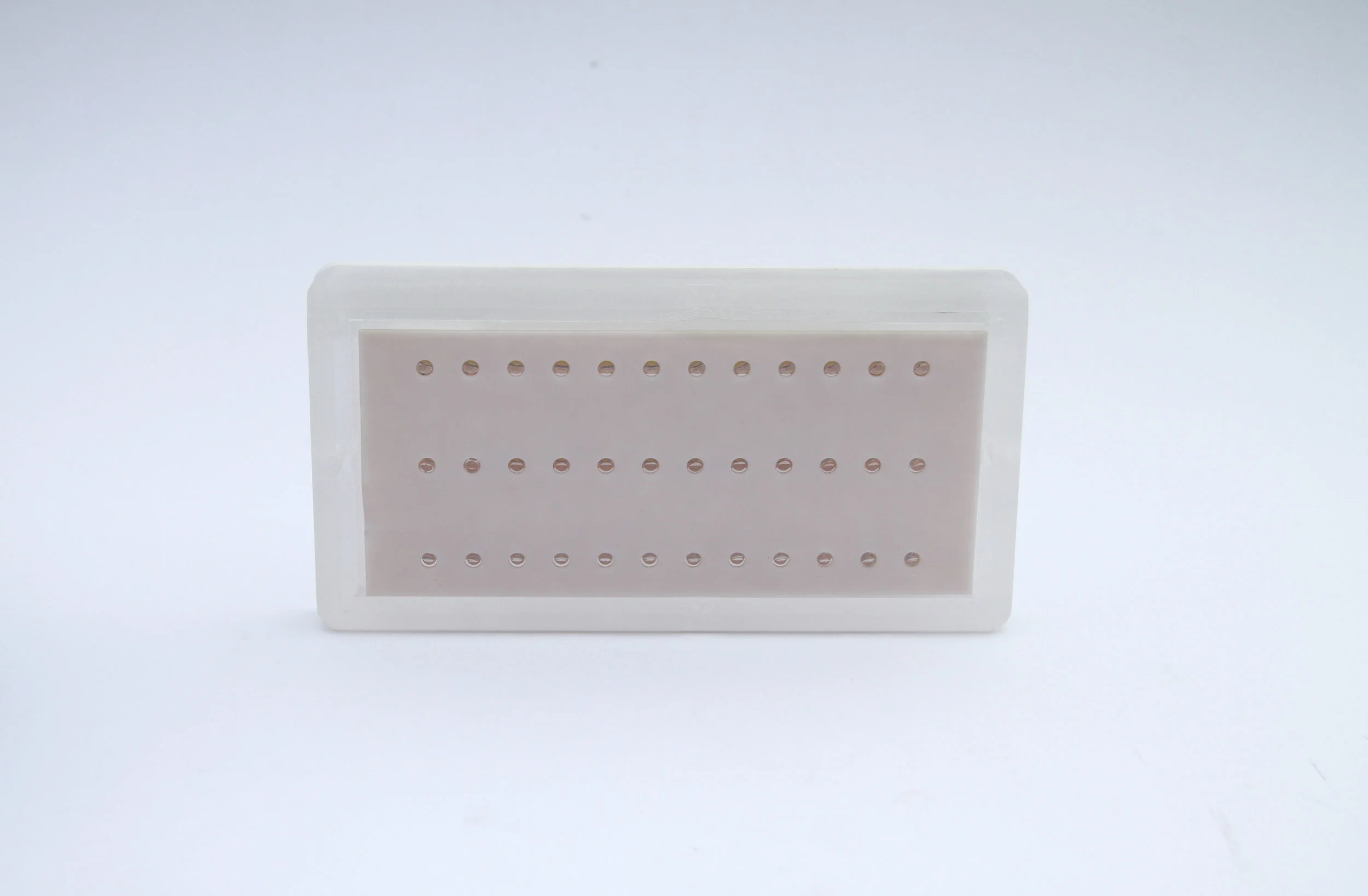

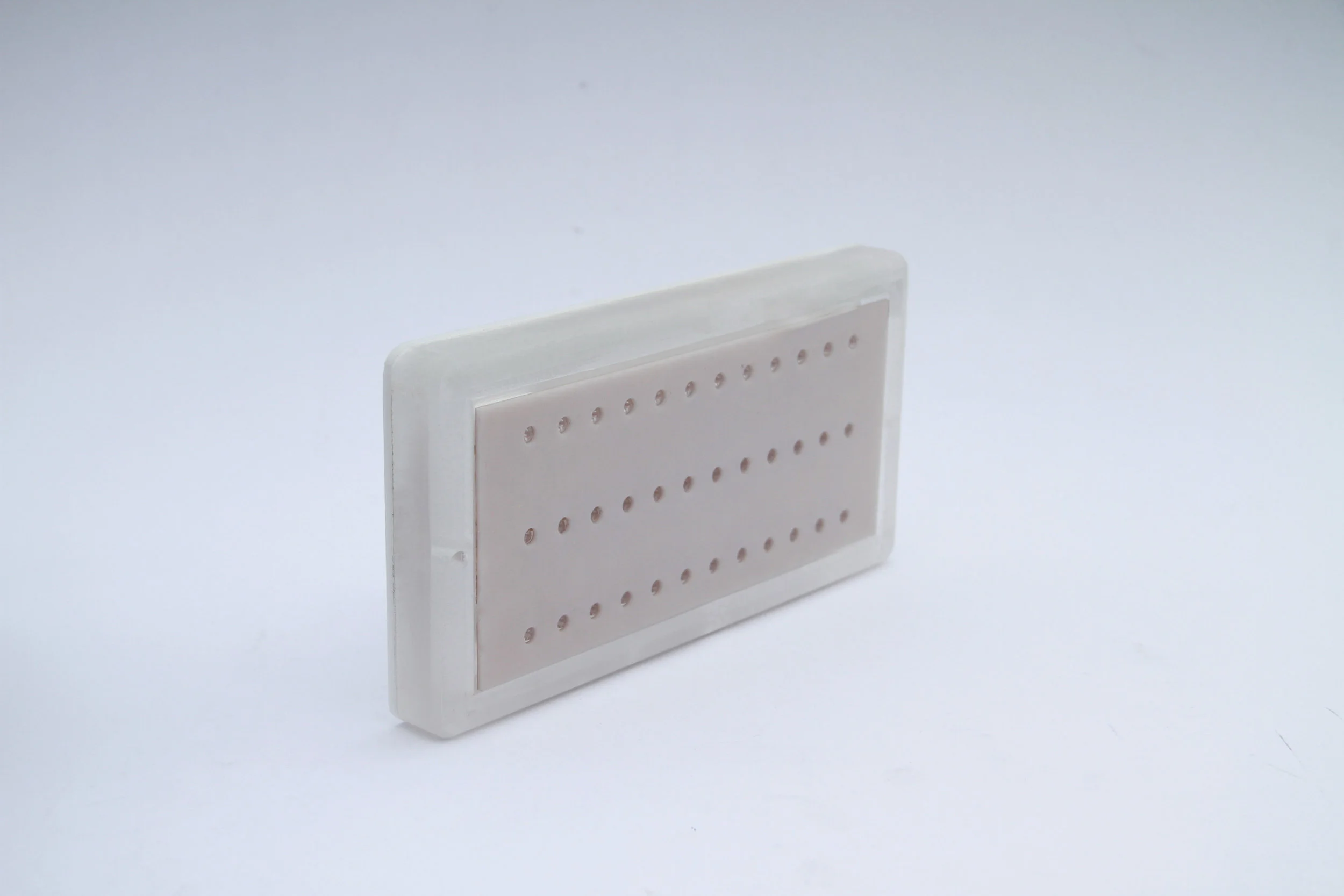

8x4x1 brick - a versatile LED platform for general lighting applications.

From illuminating experiments in aerospace laboratories, to providing high intensity LED light within public transit shelters, to replacing traditional oil and gas lights in developing nations, the 8x4x1 brick is and incredibly durable and customizable LED fixture. Designed around lighting requirements and customer requests, this LED fixture provides general illumination for both indoor and outdoor lighting applications. Capable of housing low to high power LEDs, it can be extensively modified to better suit its intended use.

Dimensions:

L: 8 W: 4 H: 1 inch
Lens option: H: ~.125 inch clear or diffused acrylic
Brick housing edge radius: ~.125 inch on (lens) top and sides only
Mount: 2, D: .25 inch holes -hardware not included

Electrical:

Voltage option: 12vdc or 24vdc
Wire: 12 inch 22/2AWG wire, exiting out center rear
Hookup: positive (+) = red / negative (-) = black

LED:

LED option: through hole, 5mm or surface mount, 3x3mm
LED count option:  24 or 36 LEDs
-additional counts available, see options below
LED layout: rectangular
LED beam angle: ~15 degrees for through hole, ~120 degrees for surface mount
LED power option: low power for through hole, mid or high power -for surface mount only
Color temperature option: warm white at ~3000K and cool white at ~5000K

Lumens:

Low power (through hole):
24 LED: 204 lumens, 68 lumens per watt, .250mA or 3 watts
36 LED: 342 lumens, 77 lumens per watt, .370mA or 4.4 watts

Mid power (surface mount):
24 LED mid power: 492 lumens, 155 lumens per watt, .264mA or 3.16 watts
36 LED mid power: 756 lumens, 145 lumens per watt, .432mA or 5.18 watts

High power (surface mount):
24 LED high power: 1,230 lumens, 147 lumens per watt, .696mA or 8.35 watts
36 LED high power: 1,935 lumens, 155 lumens per watt, 1.04A or 12.52 watts

Code:

Model: 8x4x1
Lens option: clear (c) or diffused (d)
Voltage option: 12vdc or 24vdc
LED option: through hole (th) or surface mount (sm)
LED count option: 24 or 36
LED power option: mid (m) or high (h) power -for surface mount only
Color temperature option: warm white (ww) or cool white (cw)
Ordering example: 8x4x1-c-12vdc-th-24-ww

Options:

LED count: 18, 48 or 60 through hole or surface mount LEDs -no minimum order required
LED color: red, green, blue, infrared or ultraviolet -minimum order (10 units) required
Enclosure: all housing parameters can be modified, please contact us for details
