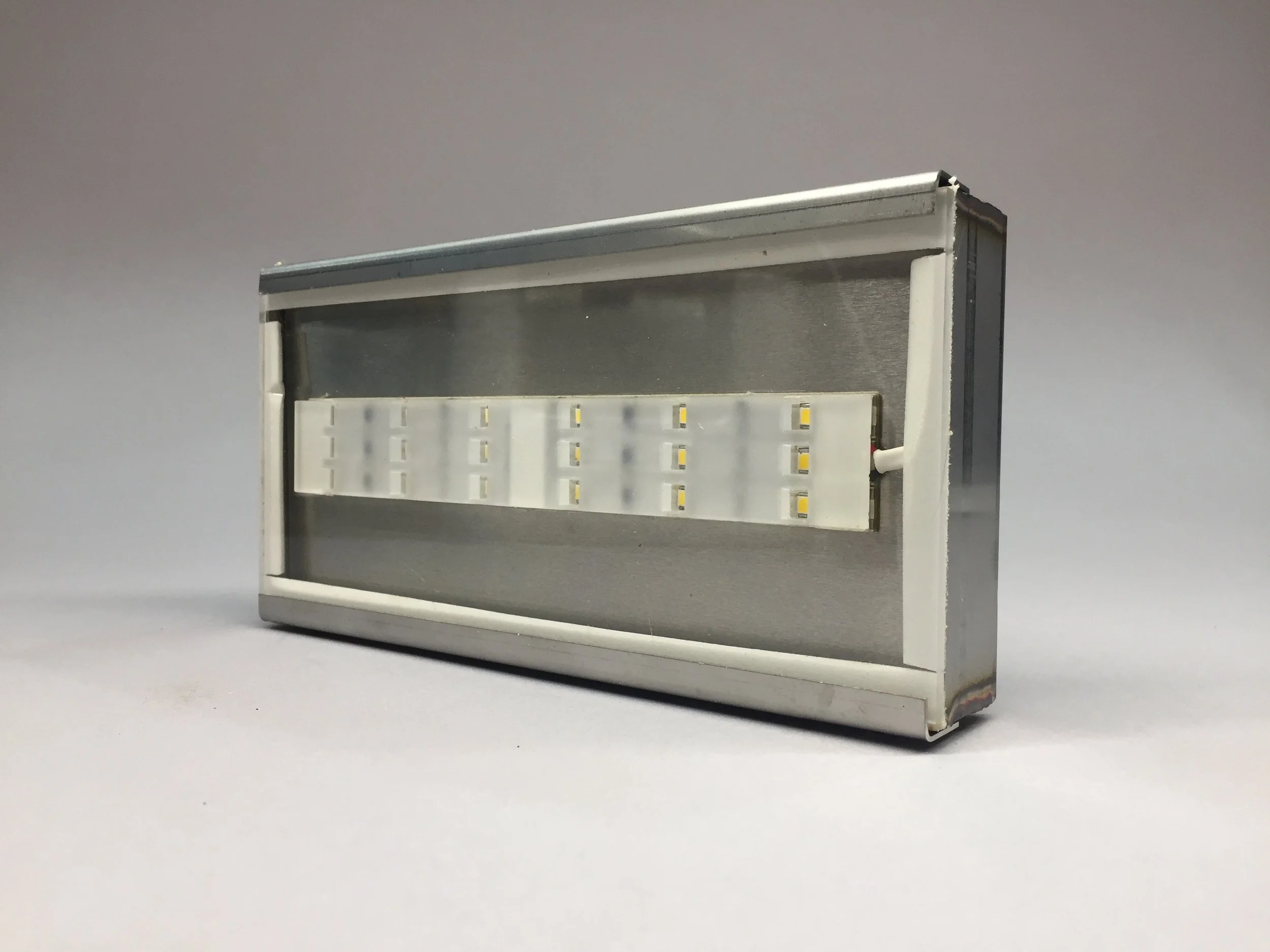

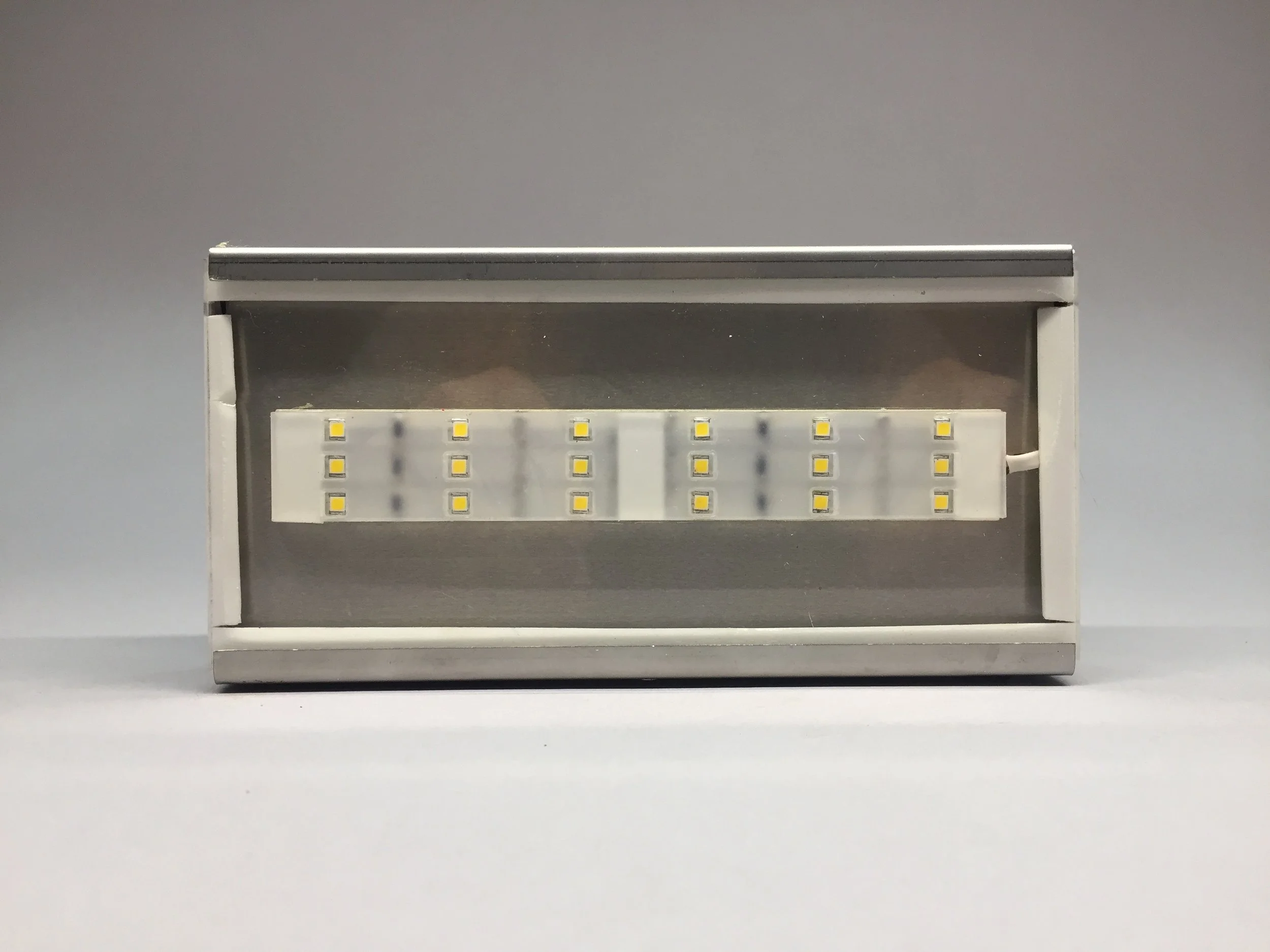

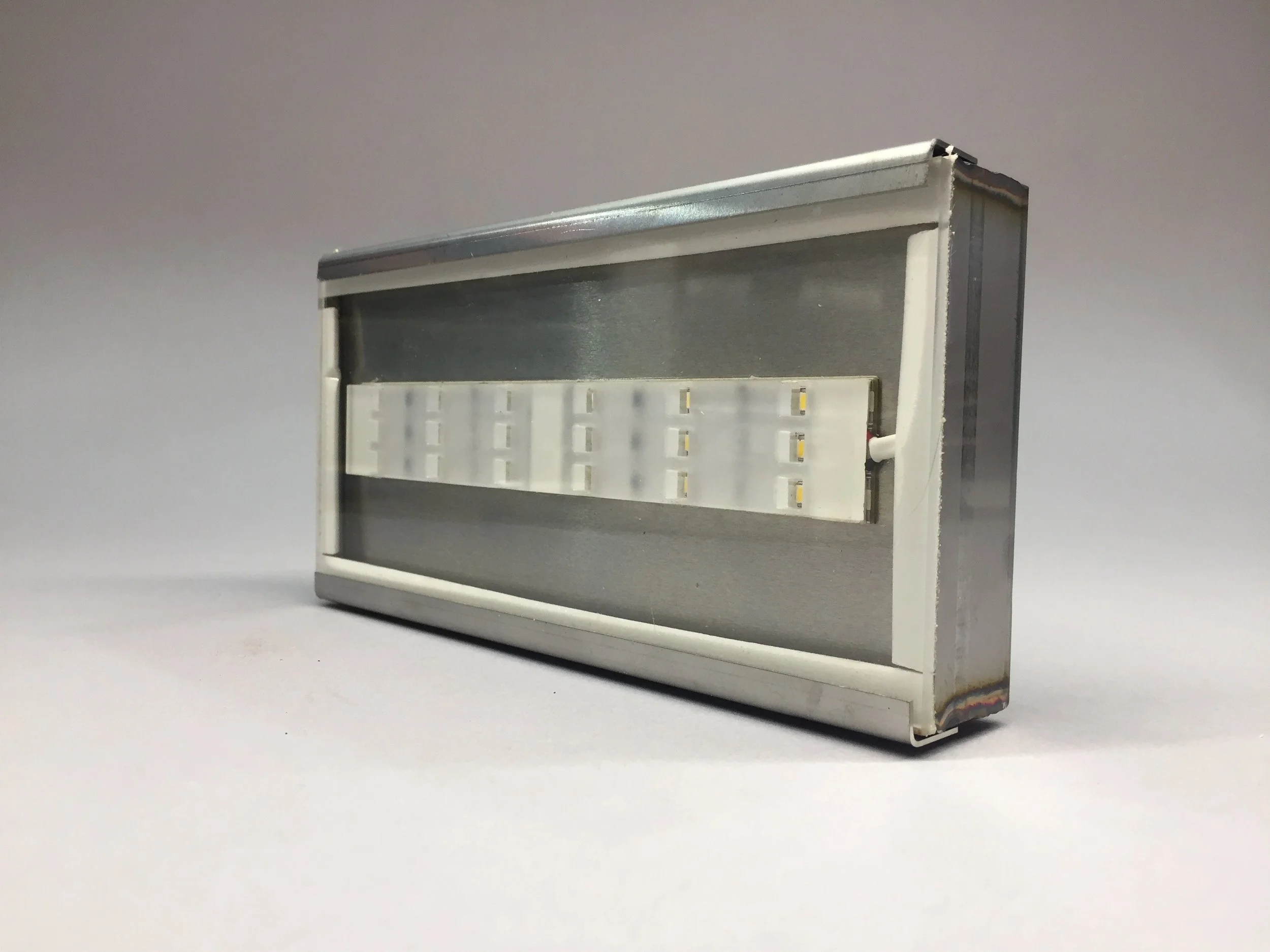

Billboard - a stainless steel outdoor LED fixture for signage lighting.

Constructed from 18 gauge TIG welded stainless steel, the billboard is a highly durable, rectangular LED floodlight intended for signage and security lighting applications. Utilizing a securable, positionable and threaded arm, the billboard allows you to place light where needed, reducing light pollution. Available in 7 and 14 inch lengths, this platform is scalable and capable of housing 24 to 120 LEDs.

Dimensions:

L: 7 W: 3.3 H: 1 inches
L: 14 W: 3.3 H: 1 inches
Lens option: H: ~.125 inch clear or diffused acrylic

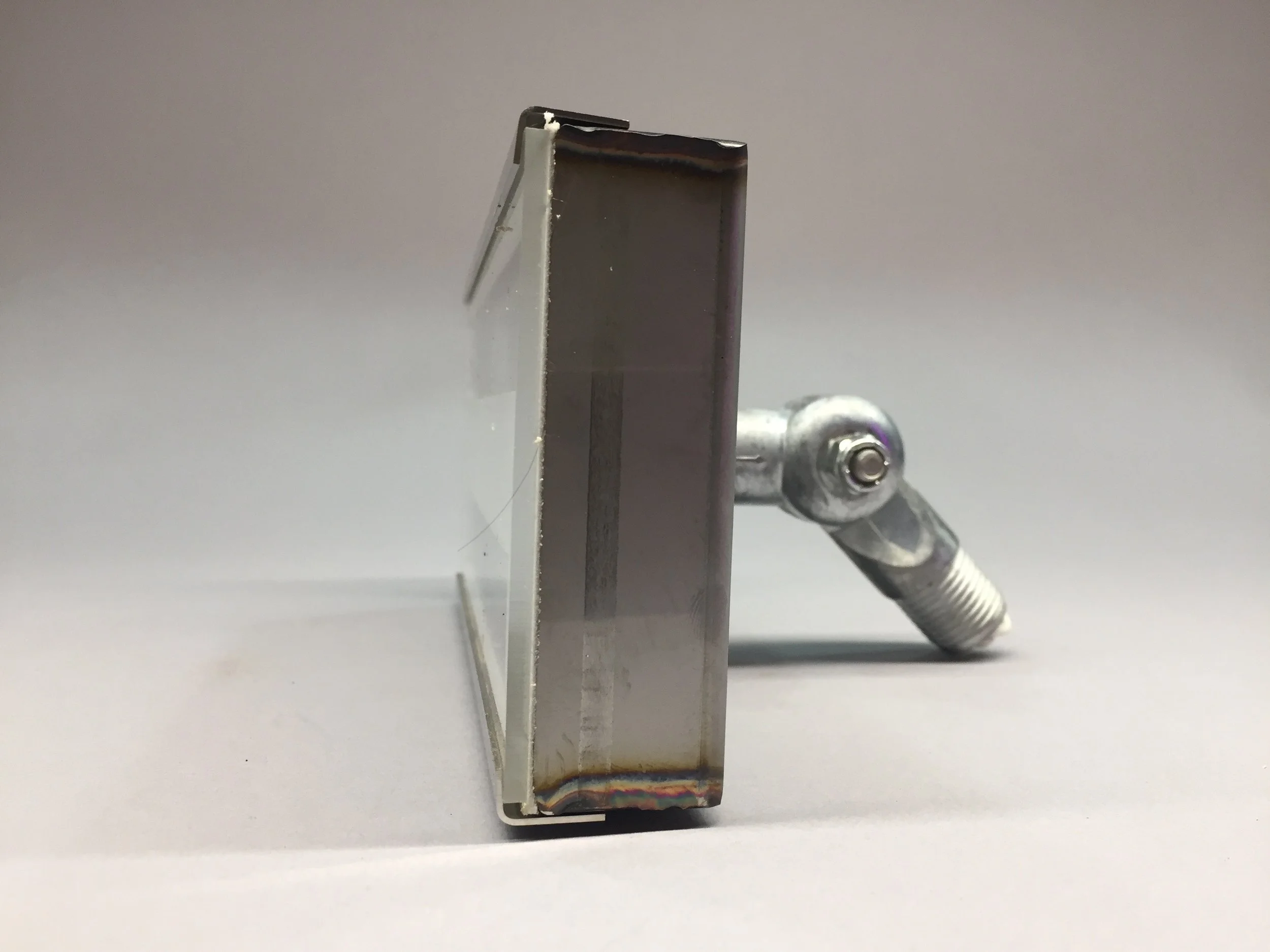

Mount: .5 inch threaded conduit fitting with 90 degree positionable bracket

Electrical:

Voltage option: 12vdc or 24vdc
Wire: 12 inch 22/2AWG wire, exiting out positionable bracket
Hookup: positive (+) = red / negative (-) = black

LED:

LED option: through hole, 5mm or surface mount, 3x3mm
LED count option: 24 or 36 LEDs

LED layout: rectangular
LED beam angle: ~15 degrees for through hole, ~120 degrees for surface mount
LED power option: low power for through hole, mid or high power -for surface mount only
Color temperature option: warm white at ~3000K and cool white at ~5000K

Lumens:

Through hole - low power:
24 LED: 204 lumens, 68 lumens per watt, .250mA or 3 watts
36 LED: 342 lumens, 77 lumens per watt, .370mA or 4.4 watts
48 LED: 456 lumens, 71 lumens per watt, .528mA or 6.3 watts
72 LED: 684 lumens, 71 lumens per watt, .792mA or 9.5 watts

Surface mount - mid power:
24 LED: 492 lumens, 155 lumens per watt, .264mA or 3.16 watts
36 LED: 756 lumens, 145 lumens per watt, .432mA or 5.18 watts
48 LED: 1,032 lumens, 149 lumens per watt, .576mA or 6.9 watts
72 LED: 1,548 lumens, 149 lumens per watt, .864mA or 10.3 watts

Code:

Models: 7 (7) or 14 (14) inch billboard
Lens option: clear (c) or diffused (d)
Voltage option: 12vdc or 24vdc
LED option: through hole (th) or surface mount (sm)
LED count option: 24, 36, 48 or 60 for 7 inch or 48 or 72 for 14 inch billboard
LED power option: mid (m) or high (h) power -for surface mount only
Color temperature option: warm white (ww) or cool white (cw)
Ordering example: 7-c-12vdc-th-x-24-ww

Options:

LED count: 18, 48 or up to 60 LEDs -no minimum order required
LED color: red, green, blue, infrared or ultraviolet -minimum order (10 units) required
Enclosure: all housing parameters can be modified, please contact us for details
