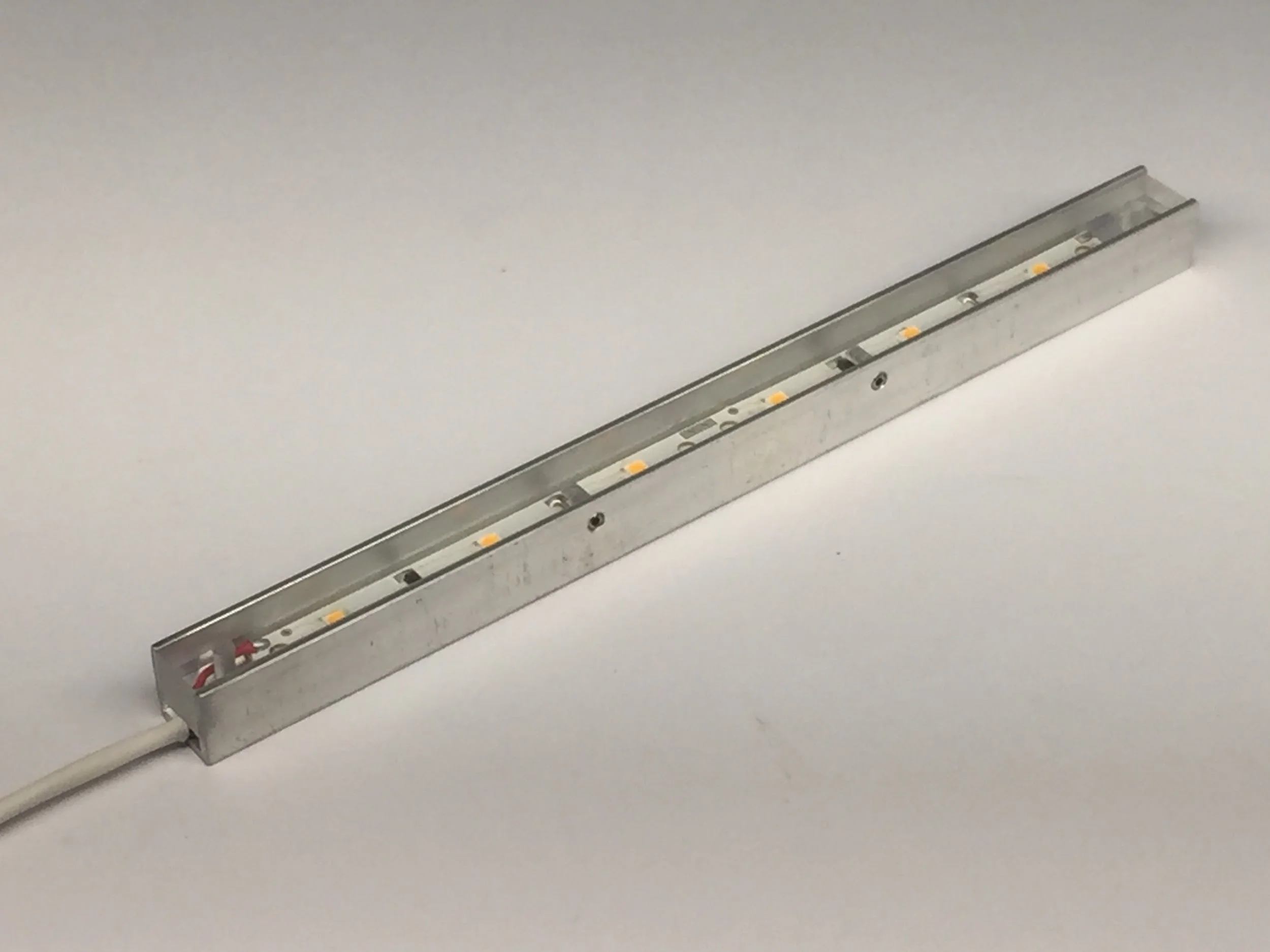

LED strip - high CRI LED strip lighting for general and accent lighting.

Our LED strips bring innovation and craftsmanship to specialized lighting applications. Available in custom lengths, our LED strips can be packaged in an array of complimentary housings, from raw to finished, in addition to low power through hole or mid to high power surface mount LEDs options. Our LED strips provide superior and consistent light dispersion for applications such as: above and below cabinetry, below or behind shelving, for art and/or display, within cove, soffet or crown molding, and for use with surface and/or wall washing. Our LED strips are rated for both indoor and outdoor use and can be hydrophobically coated for submersible applications. Exterior LED strips work effectively in outdoor applications, such as: under rail, deck stairway, point of reference lighting and illuminating signage while maintaining Dark Sky compliance. Made to order, these are high quality, solid state LED fixtures, manufactured by hand within the United States, using the finest and most current LEDs from Nichia America Corporation.

Dimensions:

L: see below W: .5 H: .5 inches
Length option: 4, 7, 10, 13, 16, 19, 22, 25, 28, 31, 34, 37, 40, 43, 46, 49, 52, 55, 58, 61, 64, 67, 70 and 73 inches
Lens option: ~.375 inch clear or diffused cast acrylic
Mount: 2, D: ~.125 inch holes, on each end of strip

Electrical:

Voltage option: 12vdc or 24vdc
Wire: 12 inch 22/2AWG wire, exiting out end of LED strip
Hookup: positive (+) = red / negative (-) = black

LED:

LED: surface mount, 3x3mm
LED count option: 3, 6, 9, 12, 18, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 54, 57, 60, 63, 66, 69 and 72 inches
LED spacing: 1 inch for surface mount
LED layout: linear
LED beam angle: ~120 degrees for surface mount
LED power option: low, mid or high power
Color temperature option: warm white at ~3000K and cool white at ~5000K

Lumens:

Surface mount - low power:
12 LED: 204 lumens, 68 lumens per watt, .250mA or 3 watts
24 LED: 342 lumens, 77 lumens per watt, .370mA or 4.4 watts
36 LED: 456 lumens, 71 lumens per watt, .528mA or 6.3 watts

Surface mount - mid power:
12 LED: 492 lumens, 155 lumens per watt, .264mA or 3.16 watts
24 LED: 756 lumens, 145 lumens per watt, .432mA or 5.18 watts
36 LED: 1,032 lumens, 149 lumens per watt, .576mA or 6.9 watts

Surface mount - high power:
12 LED: 615 lumens, 147 lumens per watt, .348mA or 4.2 watts
24 LED: 1,230 lumens, 147 lumens per watt, .696mA or 8.4 watts
36 LED: 1,935 lumens, 155 lumens per watt, 1.04mA or 12.5 watts

Code:

Length option: 4, 7, 10, 13, 16, 19, 22, 25, 28, 31, 34, 37, 40, 43, 46, 49, 52, 55, 58, 61, 64, 67, 70 and 73 inches
Lens option: ~.375 inch clear or diffused cast acrylic
Voltage option: 12vdc or 24vdc
LED count option: 3, 6, 9, 12, 18, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 54, 57, 60, 63, 66, 69 and 72 inches
LED power option: low, mid or high power
Color temperature option: warm white at ~3000K and cool white at ~5000K
Ordering example: 7-c-12vdc-th-x-24-ww

Options:

LED count: 18, 48 or up to 60 LEDs -no minimum order required
LED color: red, green, blue, infrared or ultraviolet -minimum order (10 units) required
Enclosure: all housing parameters can be modified, please contact us for details
