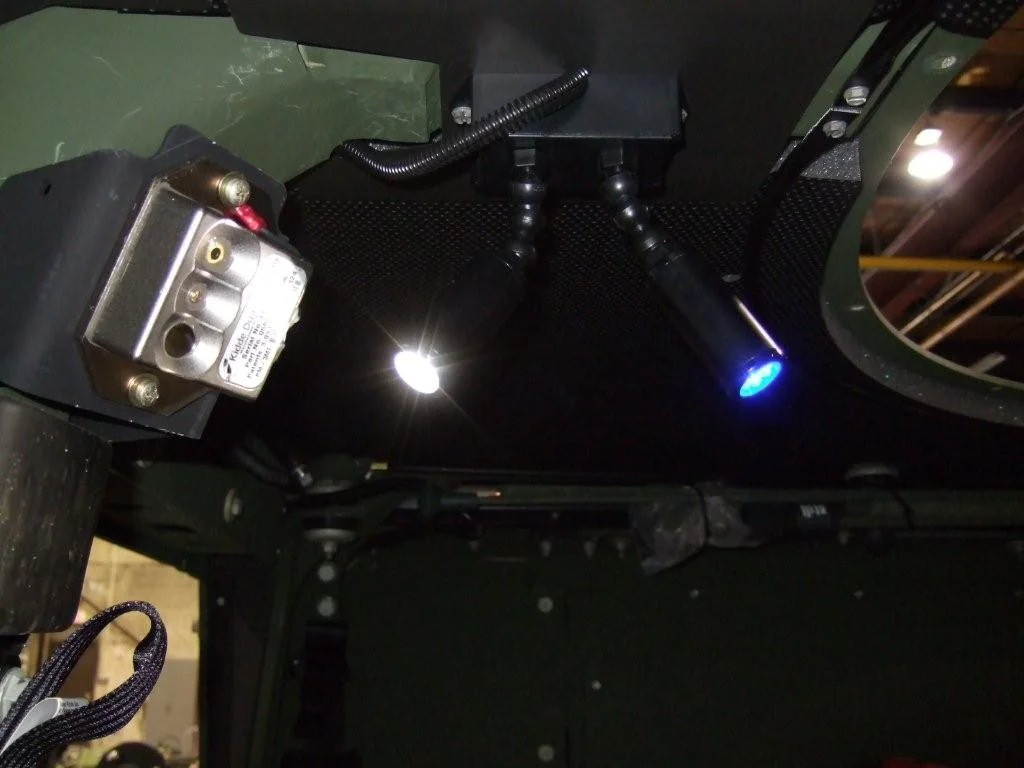

Cabin light - a low profile LED task light with a highly positionable head.

Used by the United States Military, the cabin light is "an ideal trouble light", as it "enables the operator to direct and maintain illumination during tactical modes of operation". The cabin light is a compact, positionable and customizable LED task light with an integrated switch. It is available in a head only option or in single, dual headed options with dual switch and/or split LED configurations.


L: 4.25 W: 2.3 H: 2.80 inches unextended, 6 inches extended
Lens option: clear or diffused for 9, 12 and 18 LED versions only
Switch: black rocker switch mounted on right side (centered, top) of enclosure
Mount: 2, ~.375 inch holes, hardware not included


Voltage option: 12vdc or 24vdc
Wire: 12 inch 22/2AWG wire, exiting out center rear
Hookup: positive (+) = red / negative (-) = black


LED: through hole, 5mm
LED count option: 3, 6, 9 or 12 LEDs
LED layout: circular
LED beam angle: ~15 degrees for through hole
Color temperature option: warm white at ~3000K and cool white at ~5000K


3 LED: 25 lumens, 63 lm/W, .033mA or .396 watts
6 LED: 51 lumens, 64 lm/W, .066mA or .792 watts
9 LED: 76.5 lumens, 64 lm/W, .099mA or 1.18 watts
12 LED: 102 lumens, 64 lm/W, .132mA or 1.58 watts


Model: cabin light (cl)
Lens options: clear (c) or diffused (d) for 9, 12 and 18 LED versions only
Voltage option: 12vdc or 24vdc
LED option: through hole (th)
LED count: 3, 6, 9, 12 or 18
Color temperature option: warm white (ww) or cool white (cw)

Ordering example: cl-x-12vdc-th-3-cw


LED count: 18 LEDs -no minimum order required
LED head count: head only and dual headed configurations -no minimum order required
LED color: red, green, blue, infrared or ultraviolet -minimum order (10 units) requiredEnclosure: all housing parameters can be modified, please contact us for details
